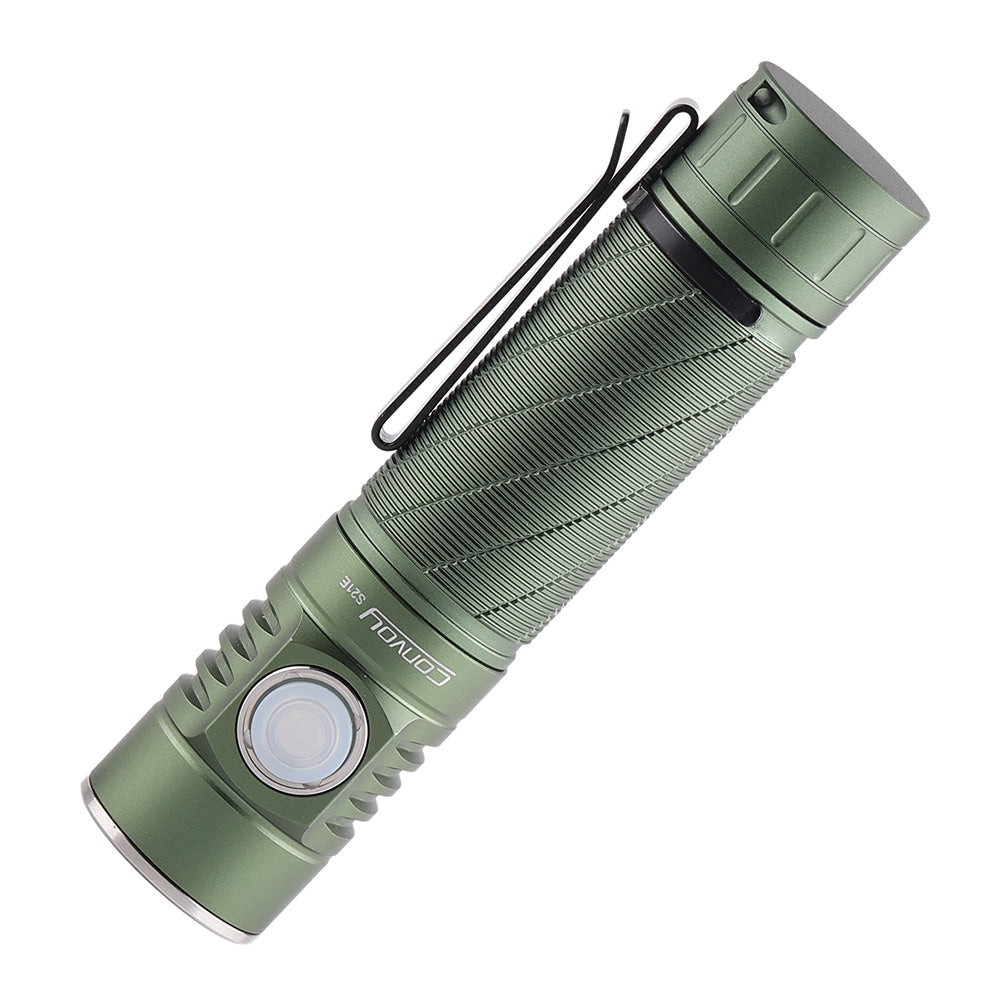

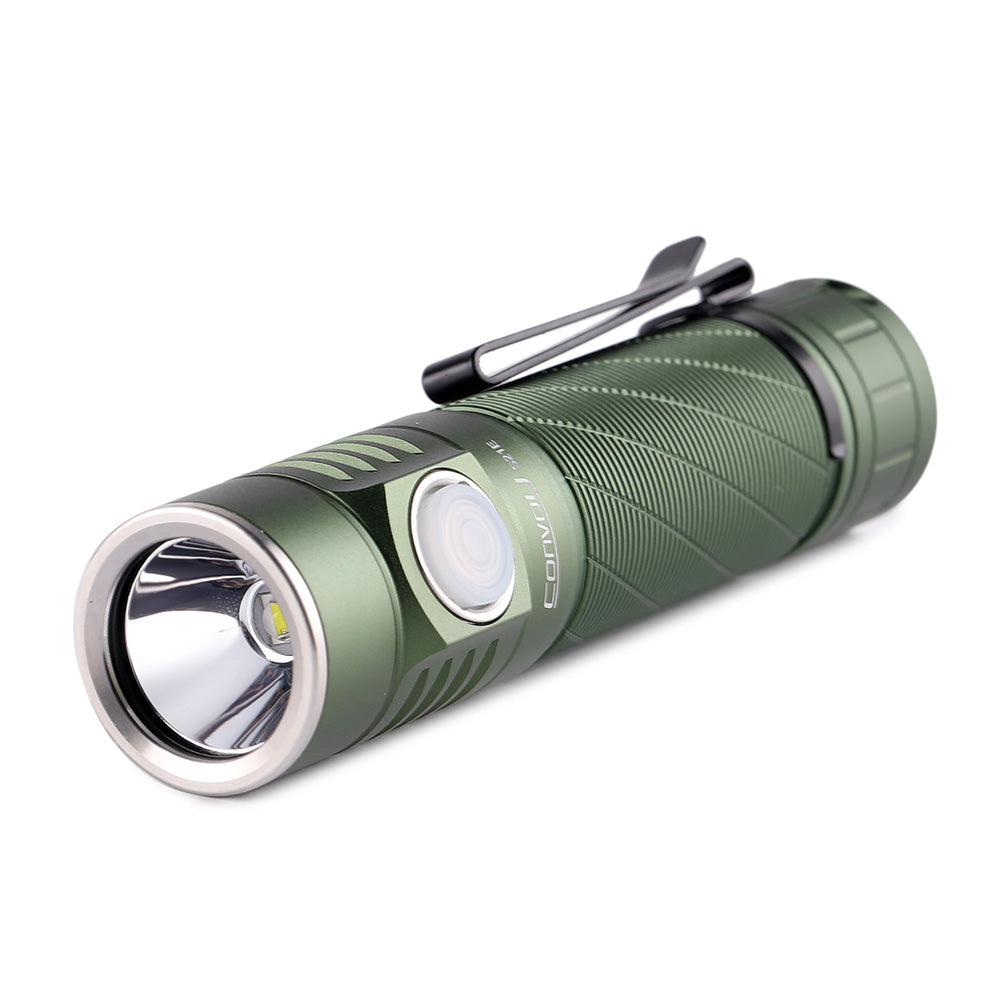

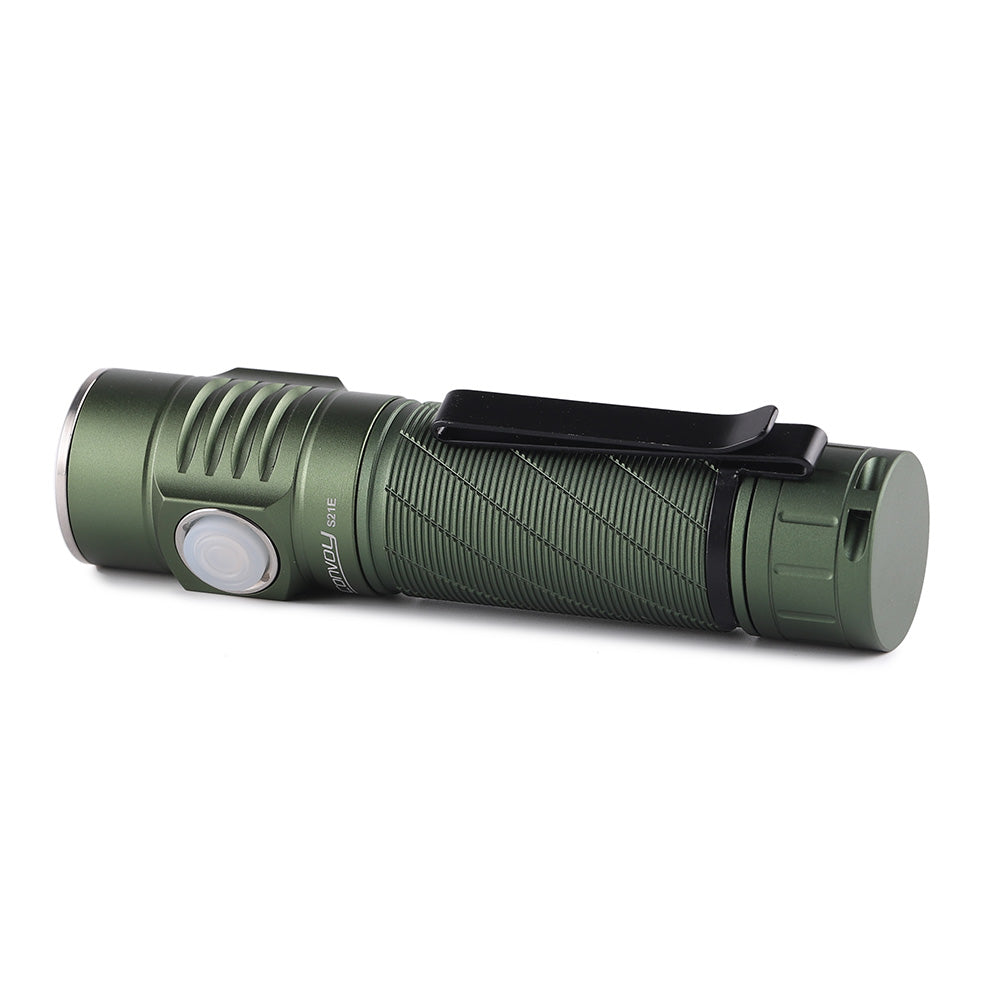

Convoy S21E green 21700 flashlight

$24.00
Basic introduction
Construction Material: Aluminum alloy，The surface is hard anodic oxidized
Lens type: gree-coated glass lens
Reflector: made of aluminium alloy, the reflective surface is vacuum-coated.
orange peel for 519A , XHP50.3 HI , B35AM , 719A ,LHP531
smooth for SST40 ,  SFT40,SFT-42R,F45R
LED MCPCB: made of copper.
DTP thermally conductive structure.
3.0 W/(m·K) thermal grease below the MCPCB.
Head structure: integrated type (Best structure for conducting heat, but please note that fast heat transfer does not mean fast heat dissipation, which depends on the surface area of the flashlight.)
Switch: The electronic switch is located on the side of the head, pay attention to the flashlight using the electronic switch has standby current, if it is possible that you will not use the flashlight for more than a week, please loosen the tail of the flashlight to avoid the risk of battery damage.
Tail: There is a hole at the bottom for installing the lanyard .It does not affect the handstand of the flashlight. Nickel-plated phosphor copper spring inside.
Electro&optical parameters Driver output:
(default constant current driver)		 3V 6A for SST40 , SFT40 , 519A , 3V XHP50.3 HI
6V 2.2A for B35AM , 719A
6V 3A for XHP50.3 HI
Driver output:
(Anduril 1.0 FET)		 3V 8A for SST40 , SFT40, 3V XHP50.3 HI
3V 6A for 519A
Driver efficiency: 80%-95%
Mode: See below for details
Flux: 1500-2000LM
Illumination distance: < 100 meters (estimated by the naked eye,  data for reference)
? (ANSI standard)
Runtime: ?
Related features Low voltage warning: Yes, After a period of alarm, the flashlight will automatically turn off.
Reverse polarity protection: Yes
Mode memory: Yes
Temperature control function： Yes , As the temperature rises, the current will drop slowly, but this does not mean that the surface of the flashlight will not heat up.
Tailstand: Yes
About the battery Battery included: No
Required battery type: unprotected 21700 lithium battery
Required battery quantity 1 piece
Size & weight Length: 116.4mm
Diameter: 27.3mm
Weight: net weight  88g (without packaging, batteries, headlight strap
gross weight 98g (include clip, lanyard, package)
Accessory: 1* lanyard , 1* clip

Flashlight Mode Operation Instructions

Default Constant Current Driver

  1. Turn on and adjust brightness: Click once to turn on the flashlight at the last remembered brightness. While it is on, press and hold to ramp the brightness up. Release, then press and hold again to ramp it down.

  2. Moonlight: From off, press and hold to enter moonlight mode (0.01 A, 0.2%). This brightness is not remembered.

  3. Turbo: From on or off, double-click for 100% brightness.

  4. Strobe: From off, triple-click to enter strobe mode.

  5. Tactical mode: From off, click four times to enter tactical mode, which operates at 100% brightness only. Click four times again to exit.

  6. Voltage detection: From off, click five times. The flashes indicate battery voltage: three flashes, a pause, then seven flashes mean 3.7 V.

  7. Four-level mode: From off, click six times to switch from smooth ramping to four brightness levels: 1%, 10%, 40%, and 100%.

  8. Lock mode: From off, click ten times to lock the flashlight. While locked, any operation produces one flash. Click ten times again to unlock it; this is the only way to unlock.

The flashlight includes low-voltage protection and temperature control.

10A Buck Constant Current Driver

  1. Turn on and adjust brightness: Click once to turn on the flashlight at the last remembered brightness. While it is on, press and hold to ramp the brightness up. Release, then press and hold again to ramp it down.

  2. Moonlight: From off, press and hold to enter moonlight mode (5 mA). This brightness is not remembered.

  3. High: From on or off, double-click for 100% brightness at 5 A.

  4. Momentary turbo: From on or off, double-click and hold the second click for 10 A turbo. Release to return to the previous brightness or the off state.

  5. Strobe: From off, triple-click to enter strobe at 100% brightness.

  6. Tactical mode: From off, click four times to enter tactical mode at 5 A. Click four times again to exit.

  7. Voltage detection: From off, click five times. Three flashes, a pause, then seven flashes mean 3.7 V.

  8. Four-level mode: From off, click six times to switch from smooth ramping to four output levels: 145 mA, 500 mA, 1,500 mA, and 5,000 mA.

  9. Lock mode: From off, click ten times to lock the flashlight. While locked, any operation produces one flash. Click ten times again to unlock it; this is the only way to unlock.

The flashlight includes low-voltage protection and temperature control. Standby current is approximately 22 µA when powered off.



Mode operation instructions(Anduril 1.0):
