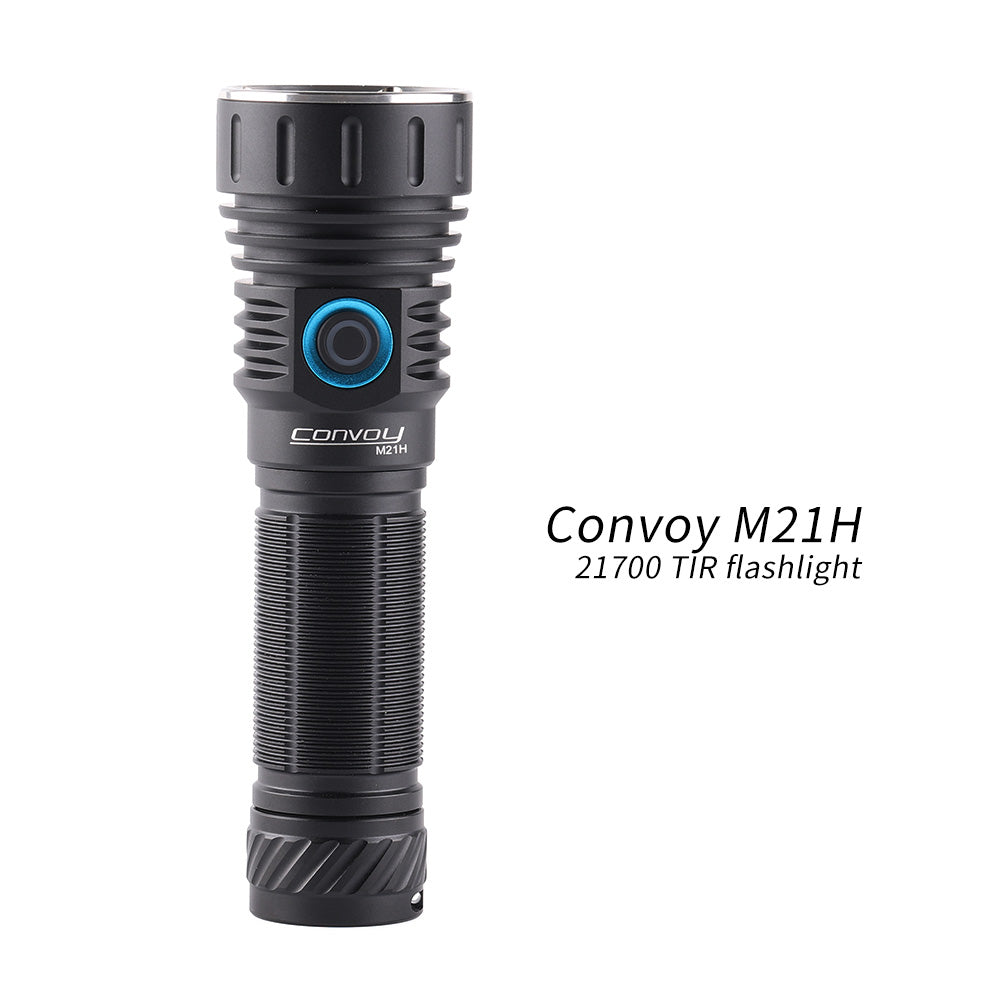

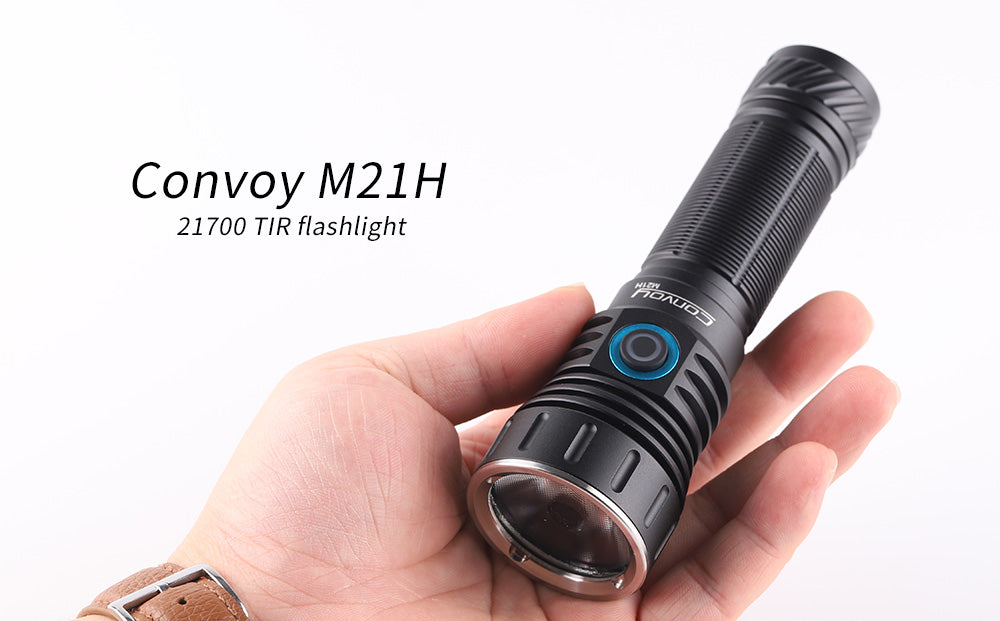

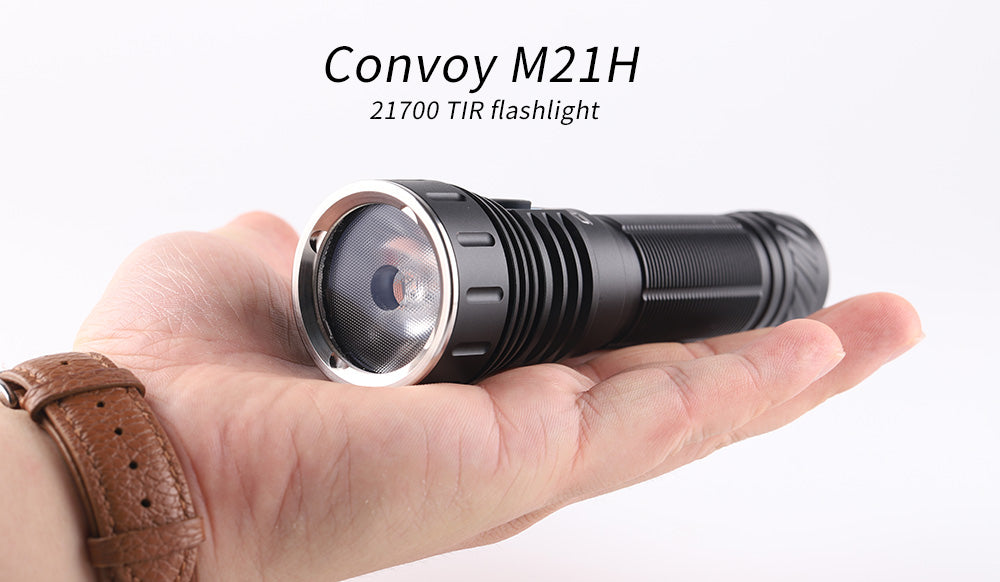

Convoy M21H 21700 flashlight

Material: aluminum alloy

Low voltage warning: yes

Reverse polarity protection: yes

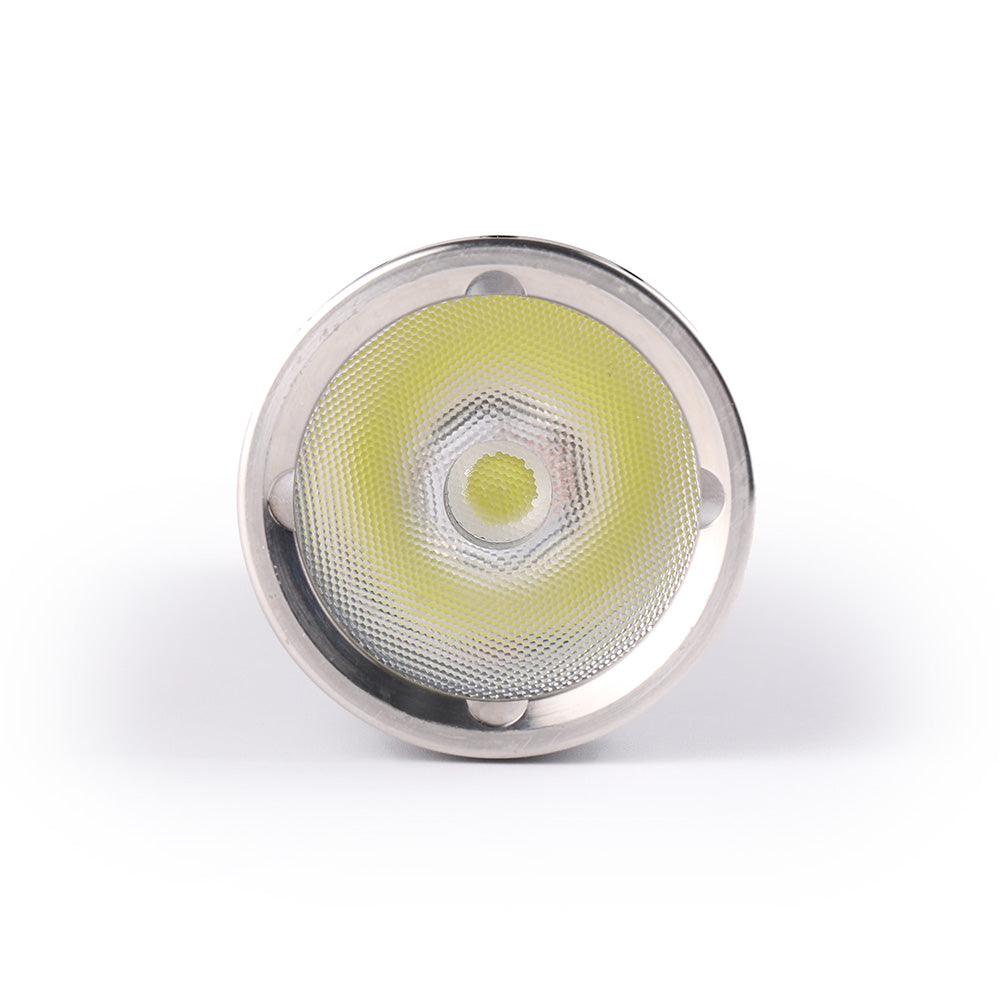

Lens Type: ar-coated glass lens ,
                  3degree TIR  for SFT40,SFT-25R,W5050SQ5,F150R,SFT-42R,F42R
                  8degree TIR for LHP531/SFT70/LHP73B,
                  12degree TIR for XHP70/GT FC40

Switch position: side

Mode memory: yes

Tail stand: yes

Driver output :

                     6V 5A for XHP70.2,XHP70.3 Hi,SFT70

                     12V 2.5A for GT FC40
                     3V 8A for GT red/green/blue light, SFT40, SFT-25R, LHP531,W5050SQ5
                     3V 10A for F45R,SFT-42R
                     3V 20A for LHP73B

Flux:

                     XHP70.2,XHP70.3 Hi R70--- 4000LM

                     XHP70.3 Hi R9050---3000LM

                     GT FC40 --- 2500LM

Maximum charging current: 2A

Battery charger includes: not included

Battery type required: 1*21700 standard battery

Number of batteries required: 1

Size: Head/body/tail diameter: 40mm/27mm/28.5mm

length: 130.8mm

Product weight: 132g



1.click the button  ——>  flashlight is turned on with last brightness ——> press the button,brightness ramping up ——> release and press the button again,brightness ramping down

2.flashlight off, press the button  ——>  moonlight mode  (0.2%)   [This brightness will not be remembered]

3.flashlight on or off, 2-click the button  ——>  turbo 100%

4.flashlight off,3-click the button   ——>  strobe

5.flashlight off,4-click the button   ——>  tactical mode, only 100% ,4-click the button again to quit tactical mode.

6.flashlight off,5-click the button   ——>  voltage detection  (* means "flash" ,  *** pause ******* means 3.7V, )

7.flashlight off,6-click the button   ——>  normal ramping mode switch to 4modes 1%-10%-40%-100%

8.flashlight off,10-click the button   ——>  Lock mode,The flashlight will flash once under any operation, which means the flashlight is locked.10-click the button again to quit lock mode,Please note that this is the only way to unlock.



The flashlight has low voltage protection and temperature control protection.


Mode operation instructions for M21H LHP73B:

• Press the button → The flashlight turns on at the last memorized brightness → Hold the button to gradually increase brightness → Release, then hold the button again to gradually decrease brightness
• When the flashlight is off, press and hold the button → Moonlight mode (this brightness level can not be memorized)
• Whether the flashlight is on or off, double-click the button → 10A brightness mode
• Whether the flashlight is on or off, double-click and hold the button → 20A brightness mode (after releasing the button, it returns to the previous brightness level or turns off)
• When the flashlight is off, triple-click the button → Strobe mode
• When the flashlight is off, quadruple-click the button → Tactical mode, 20A; quadruple-click again to exit Tactical mode
• When the flashlight is off, quintuple-click the button → Voltage check (“” indicates flashes, “** pause *******” indicates a voltage of 3.7V)
• When the flashlight is off, six-click the button → Switch to stepped brightness mode: four brightness levels, maximum current 10A
• When the flashlight is off, ten-click the button → Lockout mode; under any operation the flashlight will blink once to indicate it is locked. Ten-click again to exit Lockout mode. Note: This is the only way to unlock.
• The flashlight features low-voltage protection and temperature control protection.
