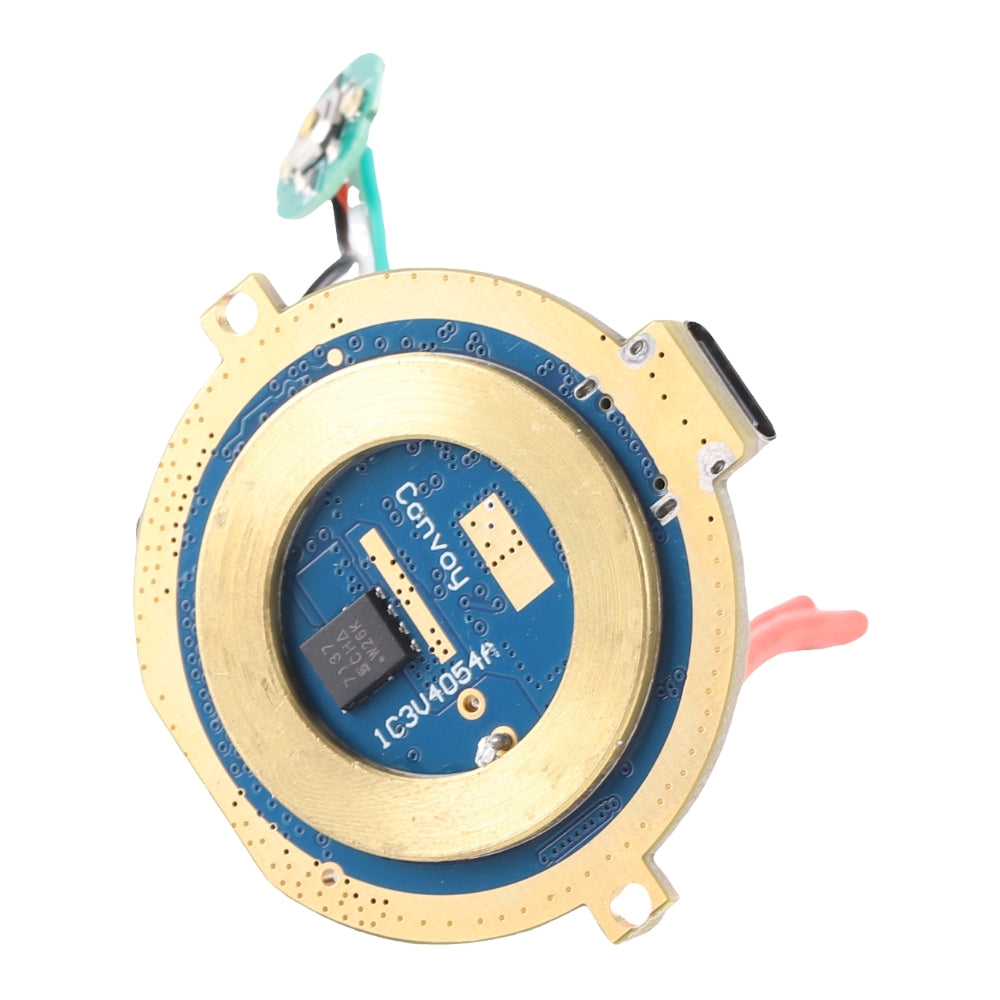

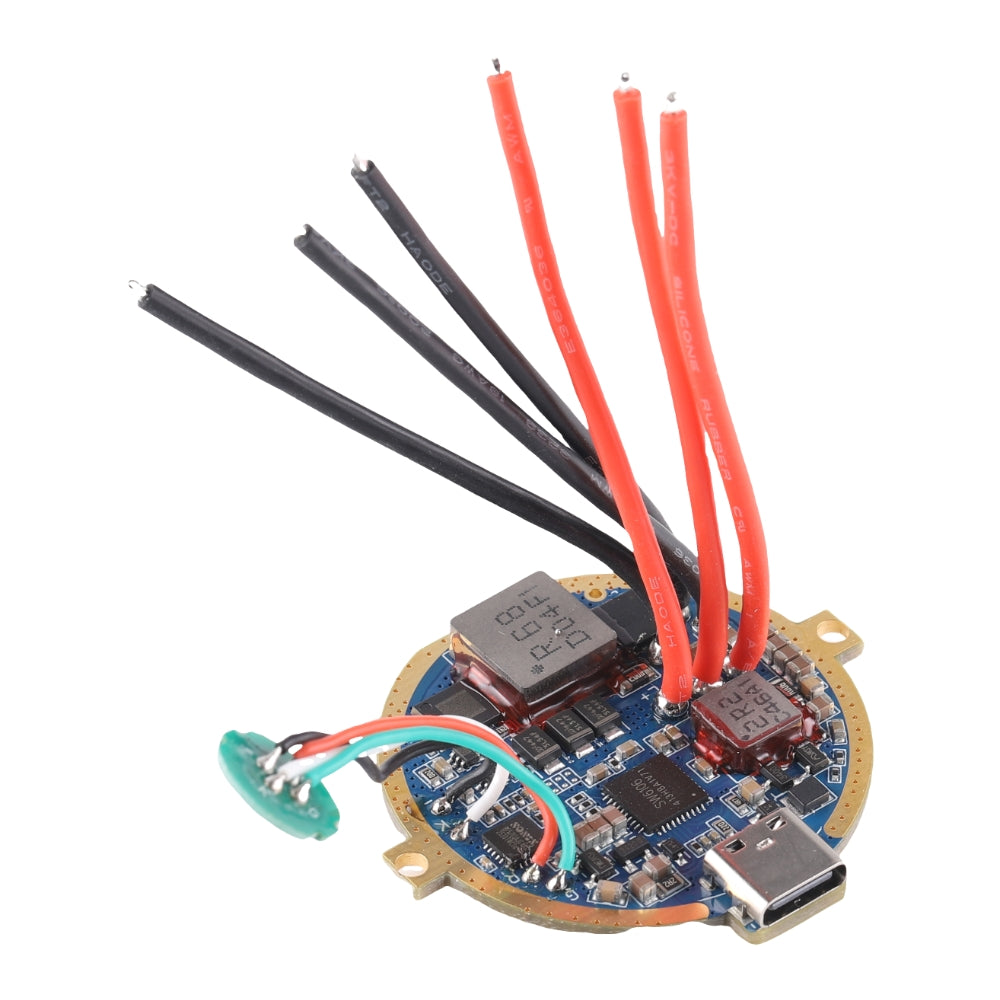

25A buck 54A FET for 3X21C 3X21E
-
-
Mode operation instructions:
-
l click the button ——> flashlight is turned on with last brightness ——> press the button,brightness ramping up ——> release and press the button again,brightness ramping down
l flashlight off, press and hold the button ——> moonlight mode 0.005A [This brightness will not be remembered]
l flashlight on or off, double-click the button ——> turbo 25A
l flashlight on or off, double-click and hold the button ——> turbo 54A [Release the button to return to the previous brightness or shutdown state.]
l flashlight off,3-click the button ——> strobe 80% brightness
l flashlight off,4-click the button ——> tactical mode 25A ,4-click the button again to quit tactical mode.
l flashlight off,5-click the button ——> voltage detection (* means "flash" , *** pause ******* means 3.7V, )
l flashlight off,6-click the button ——> ramping mode switch to 4modes 0.6A - 1.5A - 7.5A - 25A
l flashlight off,10-click the button ——> Lock mode,The flashlight will flash once under any operation, which means the flashlight is locked.10-click the button again to quit lock mode,Please note that this is the only way to unlock.
The flashlight has low voltage protection and temperature control protection.
-
